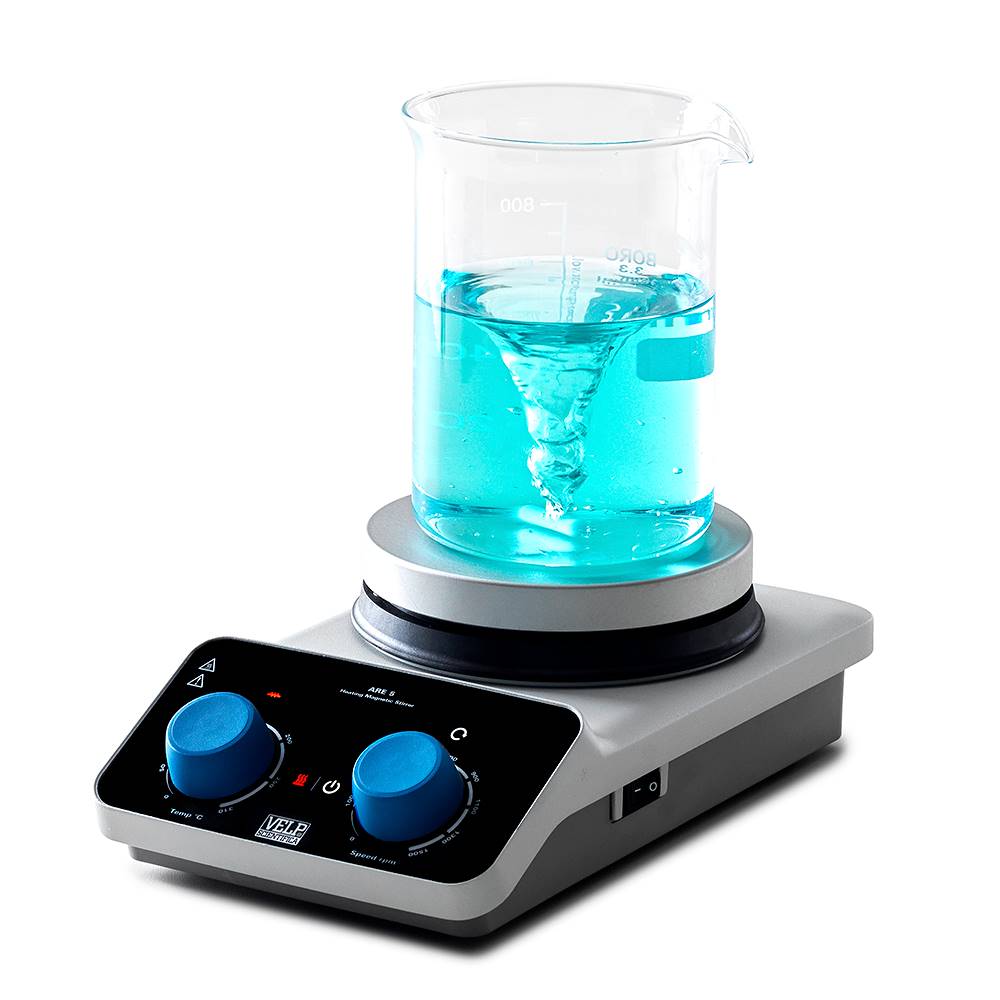

Robust hotplate stirrer designed to guarantee safety, powerful stirring and excellent heating for basic applications for industrial and academic laboratories.
Easy-to-use, Safe and Designed to Last
The ARE 5 Hotplate Stirrer is the product of choice since 1983 for basic heating and stirring laboratory requirements. A reference for many laboratories around the world ranging from universities and research centers to industrial laboratories.
The 135 mm diameter aluminum alloy top plate ensures great temperature homogeneity and optimum heat transfer across the entire surface.
Two illuminated indicators always inform the operator when the heating is on. Furthermore, the icon stays on when the temperature of the plate is above 50°C even if the instrument is switched off.
The internal electronic parts are protected by the insulating disk, which, together with the robust die-cast aluminum housing, enables the ARE 5 to withstand even the most demanding laboratory environments and applications, such as when working with cold media (below 0°C).
In addition, the ARE 5 hotplate stirrer is IP42 certified and it is backed up by a 3-year warranty (online product registration required).
Consistent stirring and heating performance for general lab applications
You can rely on the robust ARE 5 and its powerful brushless motor for everyday laboratory applications stirring volumes up to 15 liters (H2O).By turning the left knob of the ARE 5 it is possible to adjust the temperature up to 310 °C, whilst the right one allows setting the stirring speed from 100 up to 1500 rpm.
The ARE 5 is equipped with VELP-engineered SpeedServo™ torque compensation technology that ensures constant speed even when the viscosity of the medium changes.
TECHNICAL DATA
User interface
Analog
Housing material:
Epoxy painted aluminum structure
Plate material:
Aluminum alloy
Plate diameter:
135 mm
Stirring volume
15 L
Stirring speed range
100 – 1500 rpm
Speed control
Analog
Motor
Brushless
Torque compensation
SpeedServo™
Temperature range
Room temp – 310 °C
Heating control
Analog
Hot plate warning system
Illuminated Icon (when the temperature is above 50 °C)
Superior safety features: maximum protection for the operator and the samples
The AREX 6 Digital PRO is provided with 2 independent safety circuits that switch off the heat preventing possible hazards in all cases of overtemperature (higher than the set point). When the plate temperature is 50°C the display will show a residual hot plate message preventing potential burning.
The probe detection alarm of the AREX-6 Digital PRO detects that the external probe is not immersed in the medium and stops the heat preserving the sample from burning. With the AREX 6 Digital PRO is now possible to adjust the maximum operating temperature in order to meet all the lab safety standards.
The AREX 6 Digital PRO is IP42 certified and thanks to the resistant die-cast housing and the run-off grove all the internal parts of the instrument is protected from potential damage.
The AREX 6 Digital PRO is designed for the most extended lifespan and guaranteed 3 years warranty (register online for your AREX 6 Digital PRO to get the warranty extension).
Consider purchasing the optional tailor-made silicon cover that keeps the instrument safer!
State-of-the-art thermoregulation
Best in class thermoregulation is extremely stable, fast and with minimal overshoot thanks to the powerful PID thermoregulation software.
The AREX 6 Digital PRO includes Pt100 Probe and can be connected to VTF for precise and accurate control of the temperature of the medium.
Working with the Pt100 probe it is possible to choose 2 different thermoregulation modes to match all requirements:
FAST: the Hot Plate Stirrer quickly reaches the set point temperature with a little overshoot
FINE: slower temperature set point reaching with an optimized overshoot
Easy to use and smart user interface
The brand new white LED display with black background is easy to read and thanks to the new set of icons, the operator has always the clear readout of the working conditions.
The new icons inform about: probe connection, heat activation, set point temperature, timer activation and auto-reverse option.
Lock your instrument by pressing the central button for 3 seconds, a white LED will blink if an interaction is detected.
Two extremely precise turning knobs control the temperature and speed setting and for starting the heating is now necessary to tap the knob for complete safety.
By tapping at the same time both knobs is possible to access to the advanced menu for the most suitable configuration of all operating modes.
Superior performances
The extremely powerful brushless motor is able to stir from 30 up to 1700 rpm. Speed is always constant as viscosity changes with the torque compensation SpeedServo™.
The strong Alnico Magnet provides state-of-the-art magnetic coupling and guarantees superior peripheral stirring very important when combining the AREX 6 Digital PRO with the accessories.
The 135 mm diameter top is protected from chemicals and scratches by the superior resistant CeAlTop™ ceramic coating.
It is made of aluminum alloy that guarantees temperature homogeneity and the fastest heat transfer and of a thin layer of ceramic protecting the plate .
Unique features: timer and Auto-reverse option
The central button permits to set the timer in order to save time to operator and enabling unsupervised work.
The timer is settable from 1 min up to 99 hours and in the advanced menu is possible to configure it as follow:
Snap: timer countdown starts as soon as one main function (Temperature/Speed) is on
SetP: timer countdown starts when temperature set point is reached
The Auto-reverse option enhances the kinetics by changing the direction of the stirring direction. Is also possible to set the change in direction at the preferred interval of time.
ARE 5 Hot Plate Stirrer VELP
Download Catalog :
Analytical Instruments
General Instruments
Hot Plate Stirrer Velp
Description
ARE 5 Hot Plate Stirrer
Robust hotplate stirrer designed to guarantee safety, powerful stirring and excellent heating for basic applications for industrial and academic laboratories.
Easy-to-use, Safe and Designed to Last
The ARE 5 Hotplate Stirrer is the product of choice since 1983 for basic heating and stirring laboratory requirements. A reference for many laboratories around the world ranging from universities and research centers to industrial laboratories.
The 135 mm diameter aluminum alloy top plate ensures great temperature homogeneity and optimum heat transfer across the entire surface.
Two illuminated indicators always inform the operator when the heating is on. Furthermore, the icon stays on when the temperature of the plate is above 50°C even if the instrument is switched off.
The internal electronic parts are protected by the insulating disk, which, together with the robust die-cast aluminum housing, enables the ARE 5 to withstand even the most demanding laboratory environments and applications, such as when working with cold media (below 0°C).
In addition, the ARE 5 hotplate stirrer is IP42 certified and it is backed up by a 3-year warranty (online product registration required).
Consistent stirring and heating performance for general lab applications
You can rely on the robust ARE 5 and its powerful brushless motor for everyday laboratory applications stirring volumes up to 15 liters (H2O).By turning the left knob of the ARE 5 it is possible to adjust the temperature up to 310 °C, whilst the right one allows setting the stirring speed from 100 up to 1500 rpm.
The ARE 5 is equipped with VELP-engineered SpeedServo™ torque compensation technology that ensures constant speed even when the viscosity of the medium changes.
TECHNICAL DATA
Superior safety features: maximum protection for the operator and the samples
The AREX 6 Digital PRO is provided with 2 independent safety circuits that switch off the heat preventing possible hazards in all cases of overtemperature (higher than the set point).
When the plate temperature is 50°C the display will show a residual hot plate message preventing potential burning.
The probe detection alarm of the AREX-6 Digital PRO detects that the external probe is not immersed in the medium and stops the heat preserving the sample from burning.
With the AREX 6 Digital PRO is now possible to adjust the maximum operating temperature in order to meet all the lab safety standards.
The AREX 6 Digital PRO is IP42 certified and thanks to the resistant die-cast housing and the run-off grove all the internal parts of the instrument is protected from potential damage.
The AREX 6 Digital PRO is designed for the most extended lifespan and guaranteed 3 years warranty (register online for your AREX 6 Digital PRO to get the warranty extension).
Consider purchasing the optional tailor-made silicon cover that keeps the instrument safer!
State-of-the-art thermoregulation
Best in class thermoregulation is extremely stable, fast and with minimal overshoot thanks to the powerful PID thermoregulation software.
The AREX 6 Digital PRO includes Pt100 Probe and can be connected to VTF for precise and accurate control of the temperature of the medium.
Working with the Pt100 probe it is possible to choose 2 different thermoregulation modes to match all requirements:
Easy to use and smart user interface
The brand new white LED display with black background is easy to read and thanks to the new set of icons, the operator has always the clear readout of the working conditions.
The new icons inform about: probe connection, heat activation, set point temperature, timer activation and auto-reverse option.
Lock your instrument by pressing the central button for 3 seconds, a white LED will blink if an interaction is detected.
Two extremely precise turning knobs control the temperature and speed setting and for starting the heating is now necessary to tap the knob for complete safety.
By tapping at the same time both knobs is possible to access to the advanced menu for the most suitable configuration of all operating modes.
Superior performances
The extremely powerful brushless motor is able to stir from 30 up to 1700 rpm. Speed is always constant as viscosity changes with the torque compensation SpeedServo™.
The strong Alnico Magnet provides state-of-the-art magnetic coupling and guarantees superior peripheral stirring very important when combining the AREX 6 Digital PRO with the accessories.
The 135 mm diameter top is protected from chemicals and scratches by the superior resistant CeAlTop™ ceramic coating.
It is made of aluminum alloy that guarantees temperature homogeneity and the fastest heat transfer and of a thin layer of ceramic protecting the plate .
Unique features: timer and Auto-reverse option
The central button permits to set the timer in order to save time to operator and enabling unsupervised work.
The timer is settable from 1 min up to 99 hours and in the advanced menu is possible to configure it as follow:
The Auto-reverse option enhances the kinetics by changing the direction of the stirring direction. Is also possible to set the change in direction at the preferred interval of time.
