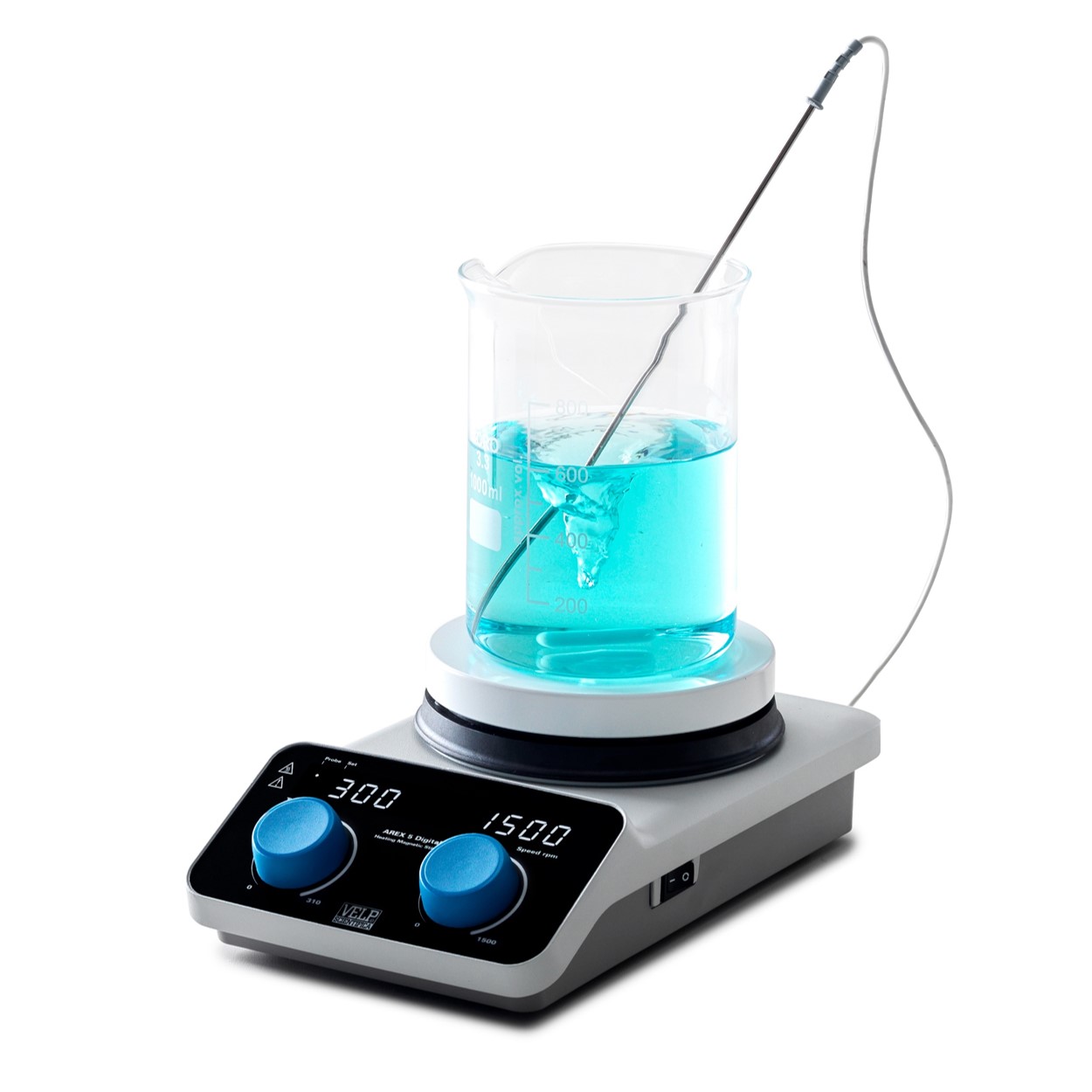

AREX 5 Digital System Hot Plate Stirrer with Temperature Probe
AREX 5 Digital hot plate stirrer VELP with CerAlTop™ plate ensuring precise thermoregulation of the media, high safety and maximum reliability.
Precise thermoregulation for a high reproducibility
The AREX 5 Digital hot plate stirrer VELP is the perfect solution for temperature-sensitive laboratory applications where precise and accurate thermoregulation of the sample is required to ensure maximum reproducibility.
The AREX 5 Digital hot plate stirrer VELP can be connected to external probes Pt100 and Pt1000 or to the VTF for precise temperature control of the medium
The CerAlTopTM plate reaches a maximum temperature of 310°C; when connected with the temperature probe (Pt100 and Pt1000) the AREX 5 Digital is able to heat up the medium up to 310°C with an accuracy of ± 1.0 °C while with the VTF the AREX 5 Digital is able to heat up the medium up to 300°C with an accuracy of ± 0.5 °C.
When the hotplate stirrer is connected to a temperature probe, it is possible to choose 2 different thermoregulation modes to match all requirements:
FAST: the Hot Plate Stirrer quickly reaches the set point temperature with a little overshoot
FINE: slower temperature set point reaching with an optimized overshoot
Choose the most suitable AREX 5 Digital configuration in the MODEL section of the page.
Powerful stirring for all lab applications
You can rely on the powerful brushless motor of the AREX 5 Digital for all of your laboratory reactions as it stirs volumes up to 20 L (H2O).
Speed setting is precise ranging from 50 to 1500 rpm making the AREX 5 Digital suitable for both low and high-speed applications.
The AREX 5 Digital is equipped with VELP-engineered SpeedServo™ torque compensation technology that ensures constant speed even when the viscosity of the medium changes.
The strong magnetic coupling supports reactions with multiple vials ensuring constant speed in all positions, visit our accessories section for more details.
A Safe Hotplate Stirrer Designed to Last
The AREX 5 Digital hotplate stirrer ensures a high level of safety and protection for laboratory operators.
The internal electronic parts are protected by the insulating disk, which, together with the robust die-cast aluminum housing, enables the AREX 5 Digital to withstand even the most demanding laboratory environments and applications, such as when working with cold media (below 0°C).
The 135 mm diameter top is protected from chemicals and scratches by the superior resistant CerAlTop™ ceramic coating.
Various safety functions protect users in their daily operations, such as safety circuits, over-temperature protection and probe detection alarm. It is also possible to limit the maximum operating temperature to meet the highest safety needs.
A security message “Hot” is displayed when the temperature of the plate is above 50°C and the heating function is not active.
The AREX 5 Digital is designed for the most extended lifespan (IP 42 protection) and guaranteed by a 3-year warranty (online product registration required).
A smart user interface for incredible ease of use
Thanks to the extremely bright and easy-to-read digital display you can constantly monitor the temperature and the stirring speed and set them with the highest precision.
The inclination of the front panel has been carefully designed to optimize the user experience for all the lab users and to clearly read the values shown on the digital displays.
To set the temperature and stirring speed it is required to turn and push the knobs for maximum safety.
The hot plate magnetic stirrer AREX 5 Digital offers a highly compact and low-profile design for outstanding comfort over the bench and inside the laboratory hood.
Superior safety features: maximum protection for the operator and the samples
The AREX 6 Digital PRO is provided with 2 independent safety circuits that switch off the heat preventing possible hazards in all cases of overtemperature (higher than the set point). When the plate temperature is 50°C the display will show a residual hot plate message preventing potential burning.
The probe detection alarm of the AREX-6 Digital PRO detects that the external probe is not immersed in the medium and stops the heat preserving the sample from burning. With the AREX 6 Digital PRO is now possible to adjust the maximum operating temperature in order to meet all the lab safety standards.
The AREX 6 Digital PRO is IP42 certified and thanks to the resistant die-cast housing and the run-off grove all the internal parts of the instrument is protected from potential damage.
The AREX 6 Digital PRO is designed for the most extended lifespan and guaranteed 3 years warranty (register online for your AREX 6 Digital PRO to get the warranty extension).
Consider purchasing the optional tailor-made silicon cover that keeps the instrument safer!
State-of-the-art thermoregulation
Best in class thermoregulation is extremely stable, fast and with minimal overshoot thanks to the powerful PID thermoregulation software.
The AREX 6 Digital PRO includes Pt100 Probe and can be connected to VTF for precise and accurate control of the temperature of the medium.
Working with the Pt100 probe it is possible to choose 2 different thermoregulation modes to match all requirements:
FAST: the Hot Plate Stirrer quickly reaches the set point temperature with a little overshoot
FINE: slower temperature set point reaching with an optimized overshoot
Easy to use and smart user interface
The brand new white LED display with black background is easy to read and thanks to the new set of icons, the operator has always the clear readout of the working conditions.
The new icons inform about: probe connection, heat activation, set point temperature, timer activation and auto-reverse option.
Lock your instrument by pressing the central button for 3 seconds, a white LED will blink if an interaction is detected.
Two extremely precise turning knobs control the temperature and speed setting and for starting the heating is now necessary to tap the knob for complete safety.
By tapping at the same time both knobs is possible to access to the advanced menu for the most suitable configuration of all operating modes.
Superior performances
The extremely powerful brushless motor is able to stir from 30 up to 1700 rpm. Speed is always constant as viscosity changes with the torque compensation SpeedServo™.
The strong Alnico Magnet provides state-of-the-art magnetic coupling and guarantees superior peripheral stirring very important when combining the AREX 6 Digital PRO with the accessories.
The 135 mm diameter top is protected from chemicals and scratches by the superior resistant CeAlTop™ ceramic coating.
It is made of aluminum alloy that guarantees temperature homogeneity and the fastest heat transfer and of a thin layer of ceramic protecting the plate .
Unique features: timer and Auto-reverse option
The central button permits to set the timer in order to save time to operator and enabling unsupervised work.
The timer is settable from 1 min up to 99 hours and in the advanced menu is possible to configure it as follow:
Snap: timer countdown starts as soon as one main function (Temperature/Speed) is on
SetP: timer countdown starts when temperature set point is reached
The Auto-reverse option enhances the kinetics by changing the direction of the stirring direction. Is also possible to set the change in direction at the preferred interval of time.
AREX 5 Digital System Hot Plate Stirrer with Temperature Probe
Download Catalog :
Analytical Instruments
General Instruments
Hot Plate Stirrer Velp
Included in the system:
F20500580 AREX 5 DIGITAL Heat. Mag. Stirrer 230V/50-60Hz
A00000268 External Probe
Description
AREX 5 Digital System Hot Plate Stirrer with Temperature Probe
AREX 5 Digital hot plate stirrer VELP with CerAlTop™ plate ensuring precise thermoregulation of the media, high safety and maximum reliability.
Precise thermoregulation for a high reproducibility
The AREX 5 Digital hot plate stirrer VELP is the perfect solution for temperature-sensitive laboratory applications where precise and accurate thermoregulation of the sample is required to ensure maximum reproducibility.
The AREX 5 Digital hot plate stirrer VELP can be connected to external probes Pt100 and Pt1000 or to the VTF for precise temperature control of the medium
The CerAlTopTM plate reaches a maximum temperature of 310°C; when connected with the temperature probe (Pt100 and Pt1000) the AREX 5 Digital is able to heat up the medium up to 310°C with an accuracy of ± 1.0 °C while with the VTF the AREX 5 Digital is able to heat up the medium up to 300°C with an accuracy of ± 0.5 °C.
When the hotplate stirrer is connected to a temperature probe, it is possible to choose 2 different thermoregulation modes to match all requirements:
Choose the most suitable AREX 5 Digital configuration in the MODEL section of the page.
Powerful stirring for all lab applications
You can rely on the powerful brushless motor of the AREX 5 Digital for all of your laboratory reactions as it stirs volumes up to 20 L (H2O).
Speed setting is precise ranging from 50 to 1500 rpm making the AREX 5 Digital suitable for both low and high-speed applications.
The AREX 5 Digital is equipped with VELP-engineered SpeedServo™ torque compensation technology that ensures constant speed even when the viscosity of the medium changes.
The strong magnetic coupling supports reactions with multiple vials ensuring constant speed in all positions, visit our accessories section for more details.
A Safe Hotplate Stirrer Designed to Last
The AREX 5 Digital hotplate stirrer ensures a high level of safety and protection for laboratory operators.
The internal electronic parts are protected by the insulating disk, which, together with the robust die-cast aluminum housing, enables the AREX 5 Digital to withstand even the most demanding laboratory environments and applications, such as when working with cold media (below 0°C).
The 135 mm diameter top is protected from chemicals and scratches by the superior resistant CerAlTop™ ceramic coating.
Various safety functions protect users in their daily operations, such as safety circuits, over-temperature protection and probe detection alarm. It is also possible to limit the maximum operating temperature to meet the highest safety needs.
A security message “Hot” is displayed when the temperature of the plate is above 50°C and the heating function is not active.
The AREX 5 Digital is designed for the most extended lifespan (IP 42 protection) and guaranteed by a 3-year warranty (online product registration required).
A smart user interface for incredible ease of use
Thanks to the extremely bright and easy-to-read digital display you can constantly monitor the temperature and the stirring speed and set them with the highest precision.
The inclination of the front panel has been carefully designed to optimize the user experience for all the lab users and to clearly read the values shown on the digital displays.
To set the temperature and stirring speed it is required to turn and push the knobs for maximum safety.
The hot plate magnetic stirrer AREX 5 Digital offers a highly compact and low-profile design for outstanding comfort over the bench and inside the laboratory hood.
TECHNICAL DATA
Pt1000
VTF
± 1.0 °C (Pt100, Pt100)
Superior safety features: maximum protection for the operator and the samples
The AREX 6 Digital PRO is provided with 2 independent safety circuits that switch off the heat preventing possible hazards in all cases of overtemperature (higher than the set point).
When the plate temperature is 50°C the display will show a residual hot plate message preventing potential burning.
The probe detection alarm of the AREX-6 Digital PRO detects that the external probe is not immersed in the medium and stops the heat preserving the sample from burning.
With the AREX 6 Digital PRO is now possible to adjust the maximum operating temperature in order to meet all the lab safety standards.
The AREX 6 Digital PRO is IP42 certified and thanks to the resistant die-cast housing and the run-off grove all the internal parts of the instrument is protected from potential damage.
The AREX 6 Digital PRO is designed for the most extended lifespan and guaranteed 3 years warranty (register online for your AREX 6 Digital PRO to get the warranty extension).
Consider purchasing the optional tailor-made silicon cover that keeps the instrument safer!
State-of-the-art thermoregulation
Best in class thermoregulation is extremely stable, fast and with minimal overshoot thanks to the powerful PID thermoregulation software.
The AREX 6 Digital PRO includes Pt100 Probe and can be connected to VTF for precise and accurate control of the temperature of the medium.
Working with the Pt100 probe it is possible to choose 2 different thermoregulation modes to match all requirements:
Easy to use and smart user interface
The brand new white LED display with black background is easy to read and thanks to the new set of icons, the operator has always the clear readout of the working conditions.
The new icons inform about: probe connection, heat activation, set point temperature, timer activation and auto-reverse option.
Lock your instrument by pressing the central button for 3 seconds, a white LED will blink if an interaction is detected.
Two extremely precise turning knobs control the temperature and speed setting and for starting the heating is now necessary to tap the knob for complete safety.
By tapping at the same time both knobs is possible to access to the advanced menu for the most suitable configuration of all operating modes.
Superior performances
The extremely powerful brushless motor is able to stir from 30 up to 1700 rpm. Speed is always constant as viscosity changes with the torque compensation SpeedServo™.
The strong Alnico Magnet provides state-of-the-art magnetic coupling and guarantees superior peripheral stirring very important when combining the AREX 6 Digital PRO with the accessories.
The 135 mm diameter top is protected from chemicals and scratches by the superior resistant CeAlTop™ ceramic coating.
It is made of aluminum alloy that guarantees temperature homogeneity and the fastest heat transfer and of a thin layer of ceramic protecting the plate .
Unique features: timer and Auto-reverse option
The central button permits to set the timer in order to save time to operator and enabling unsupervised work.
The timer is settable from 1 min up to 99 hours and in the advanced menu is possible to configure it as follow:
The Auto-reverse option enhances the kinetics by changing the direction of the stirring direction. Is also possible to set the change in direction at the preferred interval of time.
