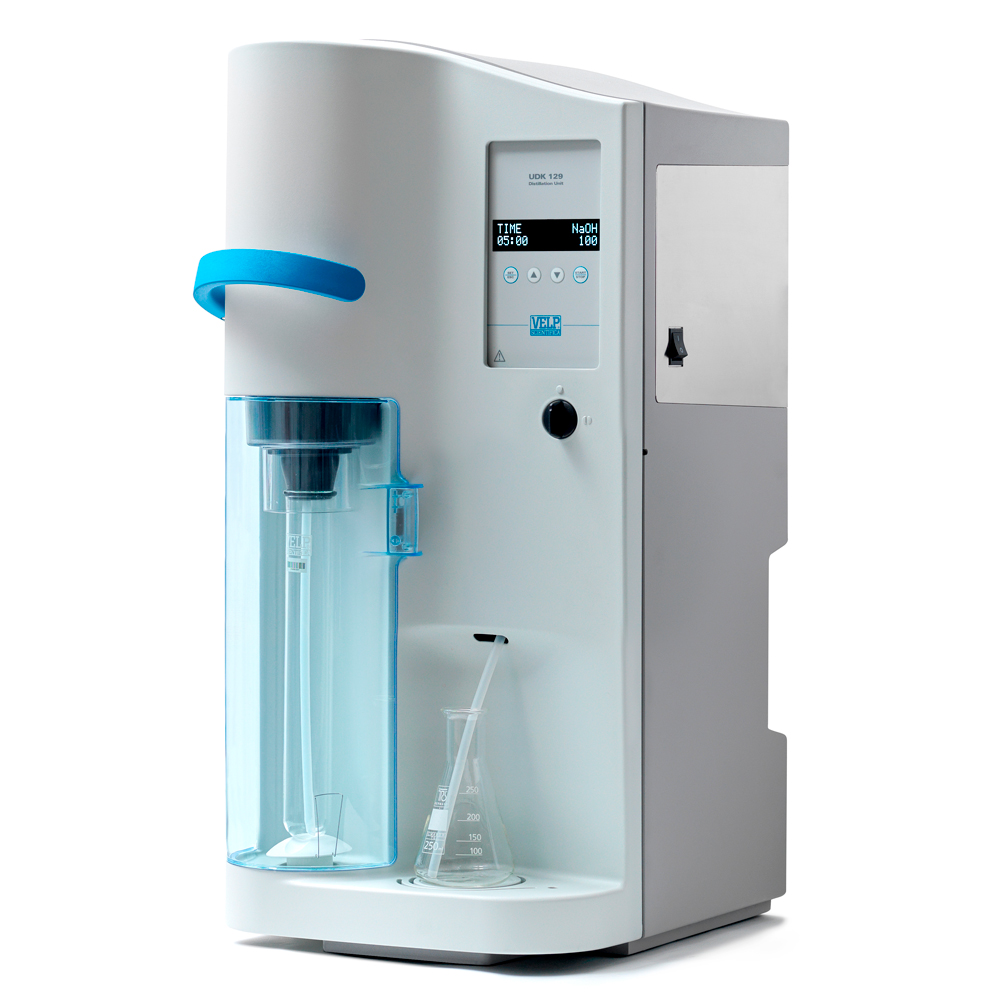

The UDK129 Kjeldahl Distillation Unit VELP is an entry-level and reliable solution for safe distillations. The most suitable distiller for laboratories looking for a simple but efficient instrument for Kjeldahl nitrogen TKN, proteins, ammoniacal nitrogen, nitric nitrogen (Devarda), TVBN, sulfites, phenols, volatile acids, cyanides, and alcohol content.The Kjeldahl distillation unit UDK 129 includes features that ensure efficient and reliable distillation, far beyond the expectations of an ordinary entry-level unit.
Programmable sodium hydroxide addition
High-precision pump ensuring constant accurate dosing of the reagent
Intuitive interface for easy analysis settings
Maximum safety for the operator
Unmatched flexibility with a wide accessory range
Unrivalled technologies to support your laboratory – Titanium Condenser and Technopolymer Splash Head
The UDK 129 features the unique VELP patented titanium condenser designed for efficient thermal exchange and low water consumption.The distillate temperature is always kept below the Kjeldahl threshold value (35 °C), as indicated in the Kjeldahl method, without nitrogen loss.
Reduced water consumption
High resistance material with prolonged lifespan
Reduced break risks during routine cleaning
The exclusive VELP Technopolymer Splash Head incorporated in the UDK 129 is designed for high throughput providing state-of-the-art durability and resistance.
Chemical resistant materials
Unmatched lifespan of up to 10,000 analyses
Maintenance-free and no risk of breaking
Reliability and safety for your lab
The UDK 129 is provided with the most complete set of safety features to ensure maximum operator safety. Sensors monitor tube in place, safety doors and cooling water flow-rate.
The VELP Patented Steam Generator guarantees safe working conditions working without pressure:
Rapid pre-heating time
High performance and resistance
Maintenance-free
Works with deionized water
Intuitive user interface ensuring ease-of-use
The bright LCD display and easy-to-use menu guide the operator in setting the instrument working conditions, including distillation time and the volume of sodium hydroxide.
The low-profile button design ensures complete comfort and enables easy process handling.
Clear readability of analysis time
Intuitive menu and sub-menu navigation
Counters for maintenance
Dedicated service menu
TEMS™ Technology
UDK Series Kjeldahl distillation units work with the innovative TEMS™ benefits, for unmatched savings.
Time Saving: rapid heating reduces wasted time Energy Saving: limited energy consumption thus cutting CO2 emissions Money Saving: cost reduction for each analysis Space Saving: the narrow footprint saves valuable laboratory bench space
Included accessories :
A00001080 Test tubes Ø 42×300 mm
10001106 Collecting flask 250 ml
10000247 Pincer for test tubes
Inlet tube and discharge tube are supplied with the instrument
UDK 129 Kjeldahl Distillation Unit VELP
Download Catalog :
Analytical Instruments
General Instruments
DKL Series Digestion Unit VELP
UDK Series Distillation Unit VELP
What’s included :
A00001080 Test tubes Ø 42×300 mm
10001106 Collecting flask 250 ml
10000247 Pincer for test tubes
Inlet tube and discharge tube are supplied with the instrument
Description
Ease of use and safety for your analyses
The UDK129 Kjeldahl Distillation Unit VELP is an entry-level and reliable solution for safe distillations. The most suitable distiller for laboratories looking for a simple but efficient instrument for Kjeldahl nitrogen TKN, proteins, ammoniacal nitrogen, nitric nitrogen (Devarda), TVBN, sulfites, phenols, volatile acids, cyanides, and alcohol content.The Kjeldahl distillation unit UDK 129 includes features that ensure efficient and reliable distillation, far beyond the expectations of an ordinary entry-level unit.
Unrivalled technologies to support your laboratory – Titanium Condenser and Technopolymer Splash Head
The UDK 129 features the unique VELP patented titanium condenser designed for efficient thermal exchange and low water consumption.The distillate temperature is always kept below the Kjeldahl threshold value (35 °C), as indicated in the Kjeldahl method, without nitrogen loss.
The exclusive VELP Technopolymer Splash Head incorporated in the UDK 129 is designed for high throughput providing state-of-the-art durability and resistance.
Reliability and safety for your lab
The UDK 129 is provided with the most complete set of safety features to ensure maximum operator safety. Sensors monitor tube in place, safety doors and cooling water flow-rate.
The VELP Patented Steam Generator guarantees safe working conditions working without pressure:
Intuitive user interface ensuring ease-of-use
The bright LCD display and easy-to-use menu guide the operator in setting the instrument working conditions, including distillation time and the volume of sodium hydroxide.
The low-profile button design ensures complete comfort and enables easy process handling.
TEMS™ Technology
UDK Series Kjeldahl distillation units work with the innovative TEMS™ benefits, for unmatched savings.
Time Saving: rapid heating reduces wasted time
Energy Saving: limited energy consumption thus cutting CO2 emissions
Money Saving: cost reduction for each analysis
Space Saving: the narrow footprint saves valuable laboratory bench space
Included accessories :
A00001080 Test tubes Ø 42×300 mm
10001106 Collecting flask 250 ml
10000247 Pincer for test tubes
Inlet tube and discharge tube are supplied with the instrument
TECHNICAL DATA :
From 1 L / min to 30°C
2200 W at 230 V
15.2×30.7×16.4 in
55 lb
Related products
UDK 169 with Autosampler – Automatic Kjeldahl Nitrogen Protein Analyzer

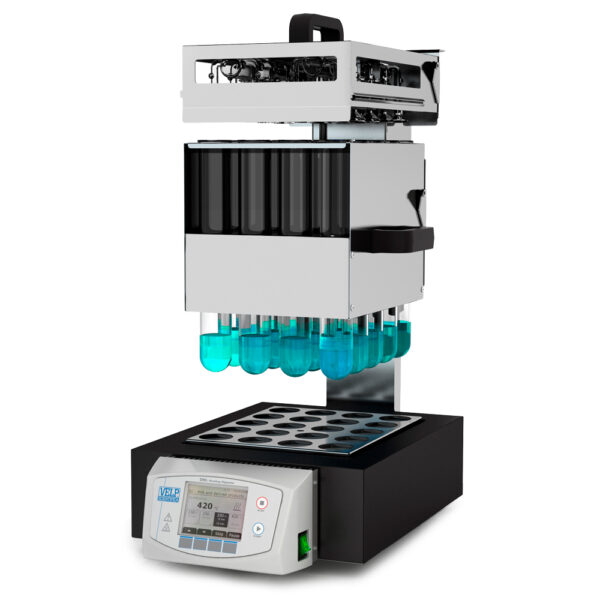

DKL 20 Automatic Kjeldahl Digestion Unit Velp
