AM 4 Multi-position Hot Plate Stirrer VELP
Download Catalog :
Analytical Instruments
General Instrumets
Hot Plate Stirrer Velp
Order Now
Category:
Heating Magnetic Stirrers
Tag:
Hot Plate Stirrer VELP
Description
Description

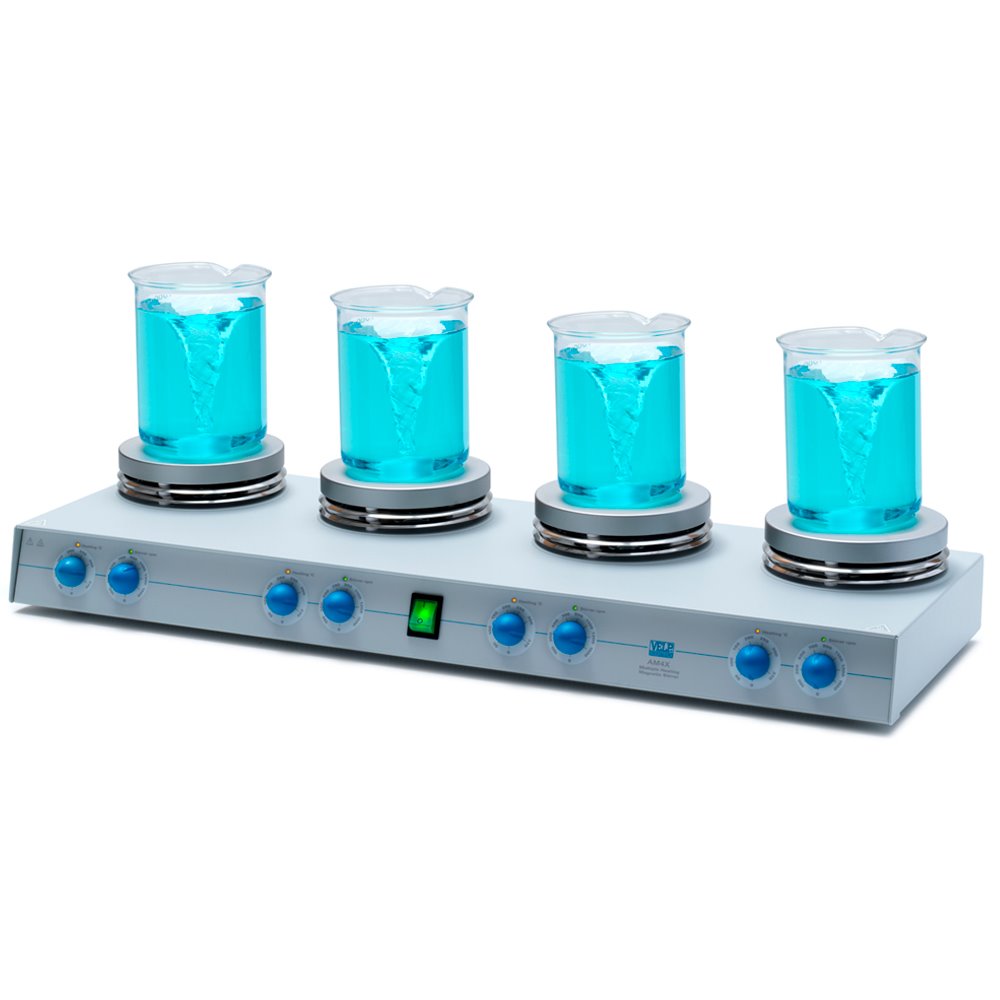

AM4 Multi-positions Hot Plate Stirrer
AM4 Multiple-position hot plate stirrer
VELP
with four separately controlled stirring plates.
Excellent Performance
Uniform heat distribution with coated aluminum alloy heating plate
Excellent resistance to chemicals
Maximum temperature 370 °C
Accepts up to 4 x 15 liter beakers
Electronic speed regulation
up to 1500 rpm
Excellent speed control, even at low speeds
SpeedServo™
ensures constant speed even when the viscosity changes
High power PCM-type driving magnet
Designed for the longest lifespan and guaranteed by 3 years warranty
4 heating stirrers, independently controlled
Distance between stirring position centres: 186 mm
Accept up to Ø 135 mm flasks
TECHNICAL DATA
Construction material:
epoxy painted metal structure
Heating plate:
aluminium alloy coated with a special protection
Heating plate diameter:
135 mm
Stirring positions:
4
Power:
2550 W
Weight:
8.3 Kg (18.2 lb)
Dimensions (WxHxD):
715x115x246 mm (28.1×4.5×9.7 in)
Electronic speed control:
up to 1500 rpm for each stirring position
Temperature regulation:
from room temp. to 370 °C for each stirring position
Stirring volume (H2O):
up to 15 liters (x4)
Stirring system:
high-power driving magnet type ”PCM”operated by a mono-phase motor for continuous operation
Counter-reaction:
constant speed
