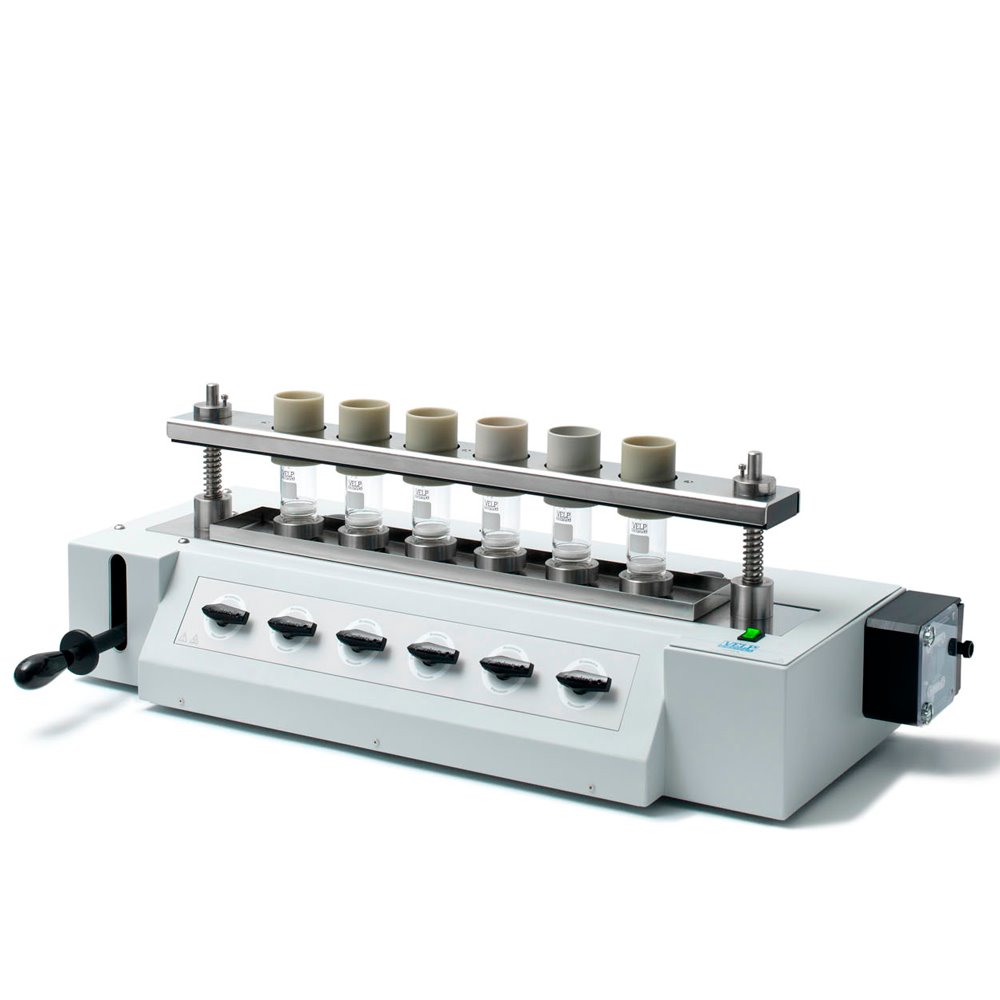

COEX Cold extractor VELP that performs rapid fat extraction on feed samples directly in the FIWE Advance and FIWE glass crucibles. The COEX is used to perform preliminary defatting of the sample prior to fiber determination with FIWE and FIWE Advance. The COEX guarantee maximum reliability and is a mandatory step for all feed sample with high fat content.
The efficient pump aspirates and removes the fatty component that will be collected in a dedicated waste tank/bottle.
the COEX is easy to use and convenient, all the reagents can be added through the same channel.
FIWE 3 and FIWE 6 are fiber analyzers suitable for raw fiber extraction, conventionally known as an indigestible residue. Rapid analysis, reliable results and high reproducibility are some of the most relevant benefits of these units which are ideal for the following applications:
– the Weende method, the oldest analytical procedure still in use today, in which fiber concentration is measured as crude fiber (CF)
– the Neutral Detergent Fiber (NDF), a method developed by Van Soest, now the most common measure of fiber used for animal feed analysis
– Acid Detergent Fiber (ADF), a portion of the plant fiber and includes cellulose, lignin and variable amounts of xylans.
– Acid Detergent Lignin (ADL) determination and Wijkstrom technique, a modification of the Weende method
High Reliability, Single or Multiple Extractions
Perform single or multiple extractions including boiling, rinsing and filtration steps with the maximum reproducibility available.
No sample transfer prevents any possible sample loss, as crucibles can also be used as sample vessels during weighing, drying and washing.
Pre-heat the reagents with RC2 hot plate (included), and pour them directly into the system.
Rapid Heating Element
An extremely efficient heating element speeds up the analysis, ensuring rapid heating of the sample, previously mixed with pre-heated reagents.
Also after the second reagent addition, the heating element grants a fast re-heating of the solution, for conspicuous saving in terms of time.
In fact, FIWE Series reduces the time required for the analysis: the equivalent manual procedure will require more than 6 hours, compared to the 2 hours with FIWE.
No transfer and sample loss
In order to prepare the sample for fiber analysis, COEX ensures rapid fat extraction directly into the same glass crucibles used by the FIWE series.
The crucible, containing the defatted sample, is transferred directly to the FIWE analyzer, eliminating possible errors due to sample transfer.
COEX Cold Extractor VELP
Download Catalog :
Analytical Instruments
General Instrumets
COEX Cold Extractor VELP
Description
Fat extraction for fiber determination
COEX Cold Extractor VELP
COEX Cold extractor VELP that performs rapid fat extraction on feed samples directly in the FIWE Advance and FIWE glass crucibles. The COEX is used to perform preliminary defatting of the sample prior to fiber determination with FIWE and FIWE Advance. The COEX guarantee maximum reliability and is a mandatory step for all feed sample with high fat content.
The efficient pump aspirates and removes the fatty component that will be collected in a dedicated waste tank/bottle.
the COEX is easy to use and convenient, all the reagents can be added through the same channel.
TECHNICAL DATA :
Crude Fiber, Neutral & Acid Detergent Fiber
FIWE 3 and FIWE 6 are fiber analyzers suitable for raw fiber extraction, conventionally known as an indigestible residue. Rapid analysis, reliable results and high reproducibility are some of the most relevant benefits of these units which are ideal for the following applications:
– the Weende method, the oldest analytical procedure still in use today, in which fiber concentration is measured as crude fiber (CF)
– the Neutral Detergent Fiber (NDF), a method developed by Van Soest, now the most common measure of fiber used for animal feed analysis
– Acid Detergent Fiber (ADF), a portion of the plant fiber and includes cellulose, lignin and variable amounts of xylans.
– Acid Detergent Lignin (ADL) determination and Wijkstrom technique, a modification of the Weende method
High Reliability, Single or Multiple Extractions
Perform single or multiple extractions including boiling, rinsing and filtration steps with the maximum reproducibility available.
No sample transfer prevents any possible sample loss, as crucibles can also be used as sample vessels during weighing, drying and washing.
Pre-heat the reagents with RC2 hot plate (included), and pour them directly into the system.
Rapid Heating Element
An extremely efficient heating element speeds up the analysis, ensuring rapid heating of the sample, previously mixed with pre-heated reagents.
Also after the second reagent addition, the heating element grants a fast re-heating of the solution, for conspicuous saving in terms of time.
In fact, FIWE Series reduces the time required for the analysis: the equivalent manual procedure will require more than 6 hours, compared to the 2 hours with FIWE.
No transfer and sample loss
The crucible, containing the defatted sample, is transferred directly to the FIWE analyzer, eliminating possible errors due to sample transfer.
