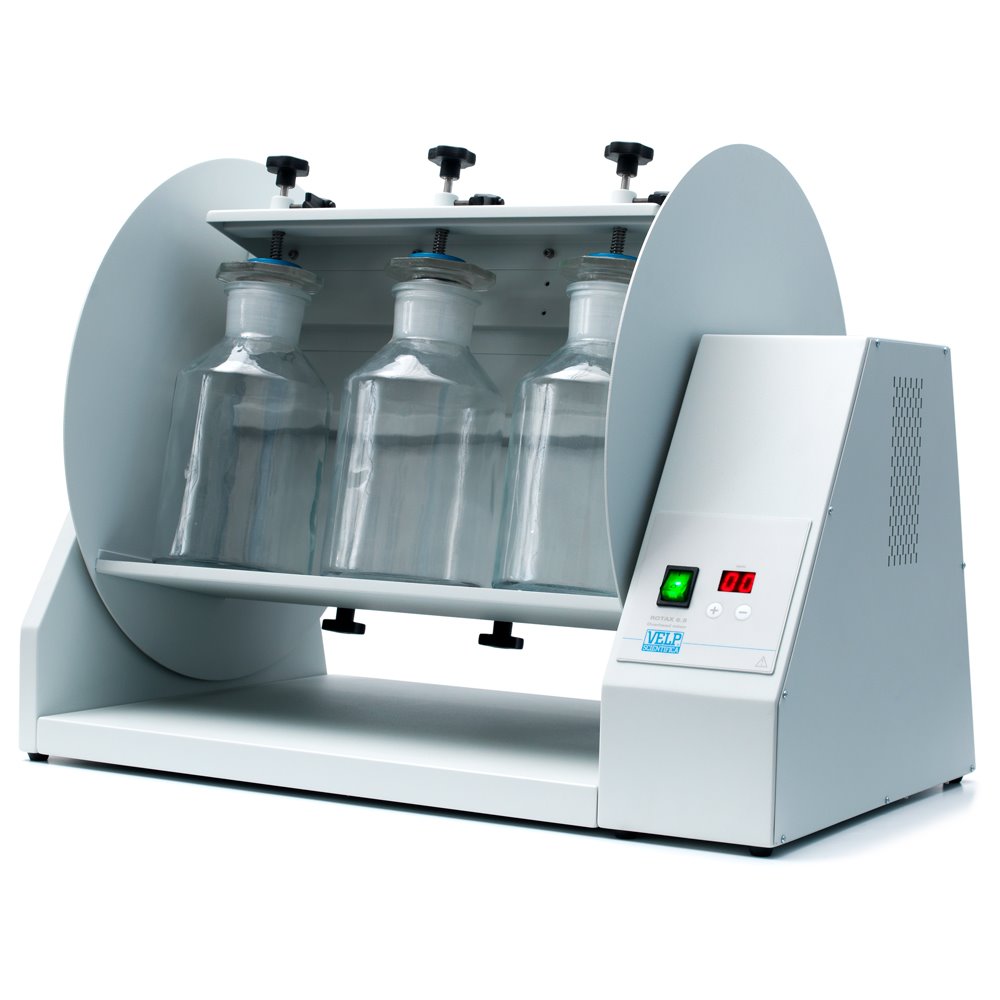

ROTAX 6.8 Overhead Shaker VELP

Description

Accurate and Safe

Strong resistance to chemical and mechanical corrosion
Rotation stops automatically if blocked
Complies with UNI 10802 and DIN 38414 standards
Electronic speed regulation up to 30 rpm
LCD speed display
Accepts 6 x 2 L or 8 x 1 L bottles (with adapter)

Recommended for:

The evaluation of pollutants solubility in water, from sludge;
The evaluation of sediments and solid wastes by waste treatment plants, wastewater treatment plants;
Laboratories for waste analysis, laboratories for environmental analysis.

TECHNICAL DATA

Construction material:	epoxy painted metal structure
Number of bottles supported:	6 bottles of 2-liter capacity 8 bottles of 1-liter capacity (with adapter)
Display:	LCD
Bottle maximum height:	1l bottle: 270 mm 2l bottle: 280 mm
Bottle minimum height:	1l bottle: 200 mm 2l bottle: 220 mm
Bottle maximum diameter:	1l bottle: 110 m 2l bottle: 135 mm
Power:	100 W
Power supply:	115 V or 230 V / 50-60 Hz
Weight:	30 kg (66 lb)
Dimensions (WxHxD):	665x520x470 mm (26.2×20.5×18.5 in)
Electronic control of speed rotation:	from 0 to 30 rpm
Resolution:	1 rpm

Deskripsi Produk
Thermoregulation and thermo stability at its best
Auto-Tuning thermoregulation system ensures optimum thermal homogeneity and stability (±0,5°C)
Eco-friendly cooling system
Internal transparent door for sample observation without temperature alterations
Selectable incubation temperature and working range from 3 to 50 °C
Auto-Tuning thermoregulation system
Uniform temperature thanks to VELP ventilation technology
Low operating costs
Reliable and Easy to control
Total volume of 169 liters
Internal sockets to power devices
Intuitive digital interface, with three keys for easy setup of the instrument
Accepts up to 4 VELP Respirometer systems (4 BOD Sensor System 6, or 1 BOD Sensor System 10)
Constant monitoring according to GLP (Good Laboratory Practice)
Adjustable recording time (in case of connection to VELP Ermes and TempSoft™)
The optional TempSoft™ incorporates high/low alarm thresholds
Quick and easy calibration
Monitor your instrument anytime, anywhere with VELP Ermes
Thanks to Velp Ermes you won’t need cables anymore. Find out the platform that allows you to reduce daily manual tasks and repetitive operations on your instruments with real-time control of your FOC Connect wherever you are.

Data Logging and Insights on the instrument are available to enhance productivity and reproducibility.

Immediate notifications and alerts will allow you to be always informed about the status of your analysis and thanks to the remote interruption you will have total control of your processes ensuring maximum security.

Access your instrument data in total security through the VELP Ermes platform and benefit from software updates and immediate ad hoc assistance, without the need for specialized technicians.
Control your FOC Connect through TEMPSoft™ software
Through the optional TEMPSoft™ software and the related connection of the FOC Connect to the pc, you are able to:
control up to 10 FOC Connect.
set working ramps (different times and temperatures) and the desired setpoint, with the possibility of minimum and maximum temperature alarm thresholds
monitor of the internal temperature with a dedicated graph
data export in multiple formats
store test data in conformity with GLP (Good Laboratory Practice)

FOC Connect comes with the MODBUS communication protocol.
