TX4 Digital Vortex Mixer with IR Sensor Velp

Description

Robust and Versatile

Digital control of vibration time and speed
Timed operation up to 999:59 minutes
Large, bright LCD multi-parameter display
Variable speed operation, electronically controlled up to 3000 rpm
Large choice of accessories to suit tubes, plates and flasks
Universal voltage / frequency model
Accessories fit by simple pressure
Optimum resistance to chemicals from technopolymer casing
Excellent stability with zinc alloy base
Large, anti-slip rubber feet for staying in required position
IP 42 protection against particles and liquids
Designed for the longest lifespan and guaranteed by 3 years warranty

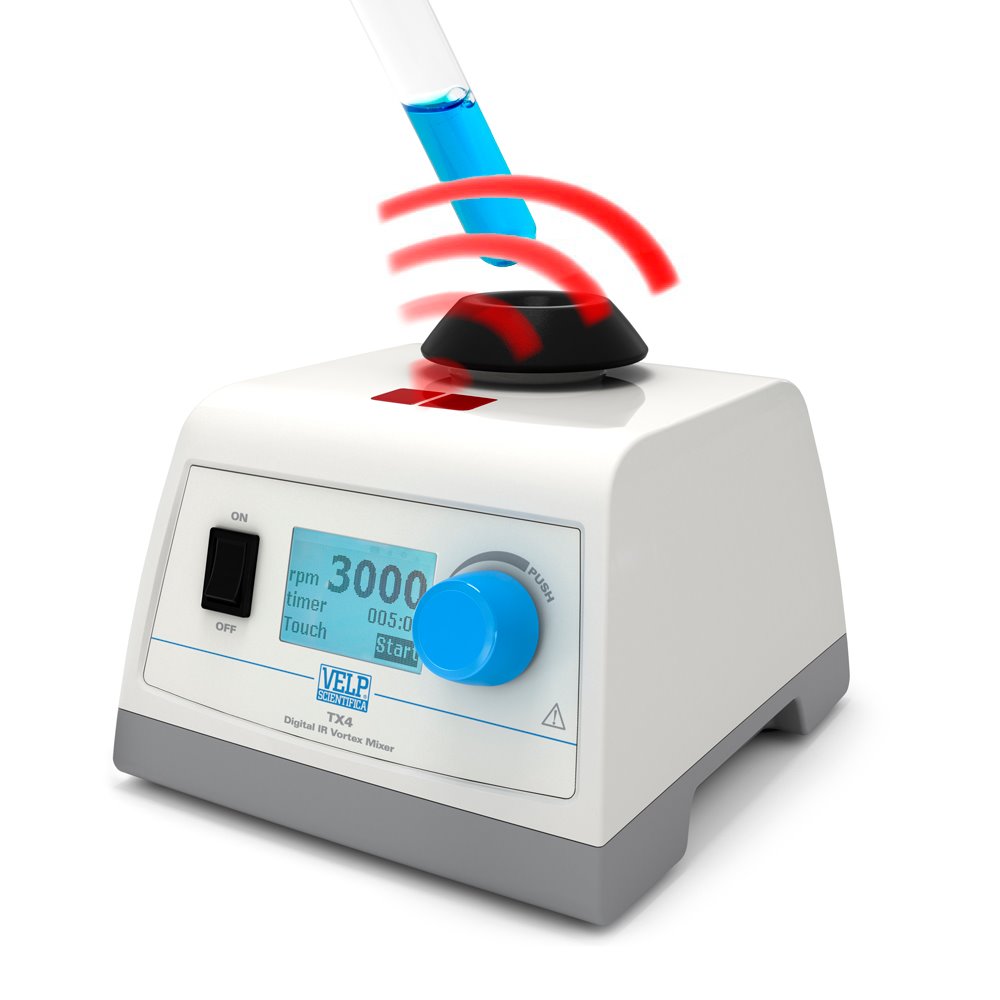

Digital Vortex Mixer with IR Sensor – A VELP Patented Solution

VELP Scientifica is the only company in the world to offer a vortex mixer with the innovative and revolutionary IR Sensor, for an outstanding efficiency and exclusive comfort.

As soon the test tube is detected, the instrument automatically starts vibrating, without the need for any pressure!

Compared with the traditional touch mode, the patented infrared sensor technology ensures a drastic reduction in repetitive strain.

TECHNICAL DATA

Construction material:	zinc alloy and technopolymer
Support system:	4 anti-sliding feet
Orbital diameter:	4.5 mm
Speed setting:	digital
Speed control:	electronic
Speed:	up to 3000 rpm
Operating modes:	infrared sensor, continuous
Display:	LCD
Timer:	0 – 999:59
CEI EN 60529:	IP 42
Power:	15 W
Weight:	2.7 Kg (5.9 lb)
Dimensions (WxHxD):	150x130x165 mm (5.9×5.1×6.5 in)

Deskripsi Produk
Thermoregulation and thermo stability at its best
Auto-Tuning thermoregulation system ensures optimum thermal homogeneity and stability (±0,5°C)
Eco-friendly cooling system
Internal transparent door for sample observation without temperature alterations
Selectable incubation temperature and working range from 3 to 50 °C
Auto-Tuning thermoregulation system
Uniform temperature thanks to VELP ventilation technology
Low operating costs
Reliable and Easy to control
Total volume of 169 liters
Internal sockets to power devices
Intuitive digital interface, with three keys for easy setup of the instrument
Accepts up to 4 VELP Respirometer systems (4 BOD Sensor System 6, or 1 BOD Sensor System 10)
Constant monitoring according to GLP (Good Laboratory Practice)
Adjustable recording time (in case of connection to VELP Ermes and TempSoft™)
The optional TempSoft™ incorporates high/low alarm thresholds
Quick and easy calibration
Monitor your instrument anytime, anywhere with VELP Ermes
Thanks to Velp Ermes you won’t need cables anymore. Find out the platform that allows you to reduce daily manual tasks and repetitive operations on your instruments with real-time control of your FOC Connect wherever you are.

Data Logging and Insights on the instrument are available to enhance productivity and reproducibility.

Immediate notifications and alerts will allow you to be always informed about the status of your analysis and thanks to the remote interruption you will have total control of your processes ensuring maximum security.

Access your instrument data in total security through the VELP Ermes platform and benefit from software updates and immediate ad hoc assistance, without the need for specialized technicians.
Control your FOC Connect through TEMPSoft™ software
Through the optional TEMPSoft™ software and the related connection of the FOC Connect to the pc, you are able to:
control up to 10 FOC Connect.
set working ramps (different times and temperatures) and the desired setpoint, with the possibility of minimum and maximum temperature alarm thresholds
monitor of the internal temperature with a dedicated graph
data export in multiple formats
store test data in conformity with GLP (Good Laboratory Practice)

FOC Connect comes with the MODBUS communication protocol.
